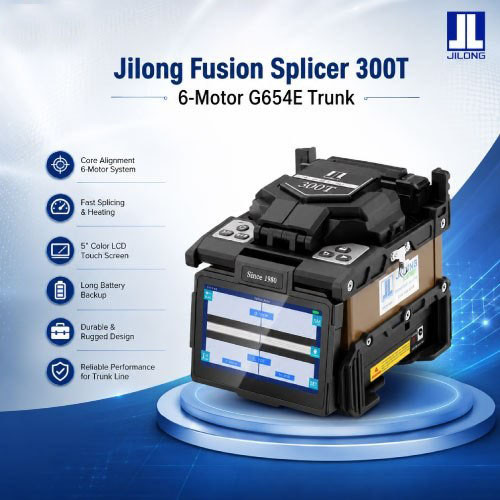

Specifications

Splice Method : Core Alignment

Applicable Fibers : SM(TTU-T G.652&G.657)/ MM(ITU-T G.651)/CS(ITU-T G.654)/DS(TU-T G.653)/ NZDS(TU-T G.655)

Compatible Fiber/Cable : 0.25~3.0mm/Drop Cable

Fiber Holder : Replaceable Universal Holder

Fiber Diameter : Cladding:80-150μm，Coating:100~1000μm

Fiber Cleave Length : 8~16 mm

Splice mode : Max 128 groups

Typical Splice Loss : SM:0.02dB/MM:0.01dB/CS:0.03dB/DS:0.04dB/NZDS:0.04dB/G.657:0.02dB ★①

Return Loss : >>60dB

Splicing Time : 6s(SM G652 QuickMode)

Estimated Splice Loss : Available

Heating Time : 10s(SM G652 250μm 40mm heat shrink tubing Fast mode)user adjustable

Protection Sleeve Length : 20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs: Max 32 groups

Battery : 9000mAh Lithium battery, approx. 500 splice & heat cycles per charge ★②

Electrode Life : Approx. 5000 discharges ★③

Auto-start : Splicing / Heating

Automatic Fiber Identification : Supported

Automatic ARC Identification : Automatic calibration based on ambient temperature and air pressure

Results Storage : 10,000 splice records or 2,000 splice images

Tension Test : 1.96~2.25N

Operating Condition : Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s

Storage Condition : 0~95% relative humidity, -20~60°C

Display : 5.0 inch High-definition LCD display

Fiber Magnification : X,Y,XY,X/Y:320x magnification

Power Supply : AC Input 100-240V, DC Input 9-14V

Terminal : USB2.0

Weight : 2.367kg(without battery)/2.9kg(with battery)

Size : 167Hx 147Wx 166D mm (including protective case)

★All-Metal Material: Excluding the battery, metal components account for over 65%+ of the weight.

★500 Splice + Heat Cycles on Full Charge: Results obtained in a room temperatureenvironment using 0.25mm fiber and 40mm sleeves; results are largely influenced bybattery status and operation.

★Cleaver Workstation: The workstation must be purchased separately.

① Results are tested using standard fibers according to ITU-T and IEC standard truncation methods; loss varies due to environment and fiber characteristics.

② Results obtained in a room temperature environment; largely influenced by battery status and operating environment.

③ Electrode life varies due to environment, fiber types, and splicing modes.
